Container Service Extension with an one-arm load balancer

The default setting for load balancer service requests for application services defaults to using the two-arm load balancer with NSX Advanced Load Balancer (Avi) in Container Service Extension (CSE) provisioned Tanzu Kubernetes Grid (TKG) cluster deployed in VMware Cloud Director (VCD).

VCD tells NSX-T to create a DNAT towards an internal only IP range of 192.168.8.x. This may be undesirable for some customers and it is now possible to remove the need for this and just use a one-arm load balancer instead.

Advertisement

The default setting for load balancer service requests for application services defaults to using the two-arm load balancer with NSX Advanced Load Balancer (Avi) in Container Service Extension (CSE) provisioned Tanzu Kubernetes Grid (TKG) cluster deployed in VMware Cloud Director (VCD).

VCD tells NSX-T to create a DNAT towards an internal only IP range of 192.168.8.x. This may be undesirable for some customers and it is now possible to remove the need for this and just use a one-arm load balancer instead.

This capability has been enabled only for VCD 10.4.x, in prior versions of VCD this support was not available.

The requirements are:

  • CSE 4.0
  • VCD 10.4
  • Avi configured for VCD
  • A TKG cluster provisioned by CSE UI.

If you’re still running VCD 10.3.x then this blog article is irrelevant.

The vcloud-ccm-configmap config map stores the vcloud-ccm-config.yaml, that is used by the vmware-cloud-director-ccm deployment.

Step 1 – make a copy of the vcloud-ccm-configmap

k get cm -n kube-system vcloud-ccm-configmap -o yaml

apiVersion: v1
data:
vcloud-ccm-config.yaml: "vcd:\n host: https://vcd.vmwire.com\n org: tenant1\n
\ vdc: tenant1-vdc\nloadbalancer:\n oneArm:\n startIP: \"192.168.8.2\"\n endIP:
\"192.168.8.100\"\n ports:\n http: 80\n https: 443\n network: default-organization-network\n
\ vipSubnet: \n enableVirtualServiceSharedIP: false # supported for VCD >= 10.4\nvAppName:
tkg-1\n"
immutable: true
kind: ConfigMap
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"v1","data":{"vcloud-ccm-config.yaml":"vcd:\n host: https://vcd.vmwire.com\n org: tenant1\n vdc: tenant1-vdc\nloadbalancer:\n oneArm:\n startIP: \"192.168.8.2\"\n endIP: \"192.168.8.100\"\n ports:\n http: 80\n https: 443\n network: default-organization-network\n vipSubnet: \n enableVirtualServiceSharedIP: false # supported for VCD \u003e= 10.4\nvAppName: tkg-1\n"},"immutable":true,"kind":"ConfigMap","metadata":{"annotations":{},"name":"vcloud-ccm-configmap","namespace":"kube-system"}}
creationTimestamp: "2022-11-19T15:08:27Z"
name: vcloud-ccm-configmap
namespace: kube-system
resourceVersion: "1014"
uid: 5e8f2136-124f-4fc0-b4e6-49741ee5545b

Make a copy of the config map to edit it and then apply, since the current config map is immutable.

k get cm -n kube-system vcloud-ccm-configmap -o yaml > vcloud-ccm-configmap.yaml

Step 2 – Edit the vcloud-ccm-configmap

Edit the file, delete the entries under data: oneArm:\n , delete the startIP and endIP lines and change the value to true for the key enableVirtualServiceSharedIP. Ignore the rest of the file.

apiVersion: v1
data:
vcloud-ccm-config.yaml: "vcd:\n host: https://vcd.vmwire.com\n org: tenant1\n
\ vdc: tenant1-vdc\nloadbalancer:\n
\ ports:\n http: 80\n https: 443\n network: default-organization-network\n
\ vipSubnet: \n enableVirtualServiceSharedIP: true # supported for VCD >= 10.4\nvAppName:
tkg-1\n"
immutable: true
kind: ConfigMap
metadata:
annotations:
kubectl.kubernetes.io/last-applied-configuration: |
{"apiVersion":"v1","data":{"vcloud-ccm-config.yaml":"vcd:\n host: https://vcd.vmwire.com\n org: tenant1\n vdc: tenant1-vdc\nloadbalancer:\n oneArm:\n startIP: \"192.168.8.2\"\n endIP: \"192.168.8.100\"\n ports:\n http: 80\n https: 443\n network: default-organization-network\n vipSubnet: \n enableVirtualServiceSharedIP: false # supported for VCD \u003e= 10.4\nvAppName: tkg-1\n"},"immutable":true,"kind":"ConfigMap","metadata":{"annotations":{},"name":"vcloud-ccm-configmap","namespace":"kube-system"}}
creationTimestamp: "2022-11-19T15:08:27Z"
name: vcloud-ccm-configmap
namespace: kube-system
resourceVersion: "1014"
uid: 5e8f2136-124f-4fc0-b4e6-49741ee5545b

Step 3 – Apply the new config map

To apply the new config map, you need to delete the old configmap first.

k delete cm -n kube-system vcloud-ccm-configmap
configmap "vcloud-ccm-configmap" deleted

Apply the new config map with the yaml file that you just edited.

k apply -f vcloud-ccm-configmap.yaml

configmap/vcloud-ccm-configmap created

To finalize the change, you have to take a backup of the vmware-cloud-director-ccm deployment and then delete it so that it can use the new config-map.

You can check the config map that this deployment uses by typing:

k get deploy -n kube-system vmware-cloud-director-ccm -o yaml

Step 4 – Redeploy the vmware-cloud-director-ccm deloyment

Take a backup of the vmware-cloud-director-ccm deployment by typing:

k get deploy -n kube-system vmware-cloud-director-ccm -o yaml > vmware-cloud-director-ccm.yaml

No need to edit this time. Now delete the deployment:

k delete deploy -n kube-system vmware-cloud-director-ccm

deployment.apps "vmware-cloud-director-ccm" deleted

You can now recreate the deployment from the yaml file:

k apply -f vmware-cloud-director-ccm.yaml

deployment.apps/vmware-cloud-director-ccm created

Now when you deploy and application and request a load balancer service, NSX ALB (Avi) will route the external VIP IP towards the k8s workers nodes, instead of to the NSX-T DNAT segment on 192.168.2.x first.

Step 5 – Deploy a load balancer service

k apply -f https://raw.githubusercontent.com/hugopow/tkg-dev/main/web-statefulset.yaml

You’ll notice a few things happening with this example. A new statefulset with one replica is scheduled with an nginx pod. The statefulset also requests a 1 GiB PVC to store the website. A load balancer service is also requested.

Note that there is no DNAT setup on this tenant’s NAT services, this is because after the config map change, the vmware-cloud-director cloud controller manager is not using a two-arm load balancer architecture anymore, therefore no need to do anything with NSX-T NAT rules.

If you check your NSX ALB settings you’ll notice that it is indeed now using a one-arm configuration. Where the external VIP IP address is 10.149.1.113 and port is TCP 80. NSX ALB is routing that to the two worker nodes with IP addresses of 192.168.0.100 and 192.168.0.102 towards port TCP 30020.

k get svc -n web-statefulset

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
web-statefulset-service LoadBalancer 100.66.198.78 10.149.1.113 80:30020/TCP 13m

k get no -o wide


NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME

tkg-1-worker-node-pool-1-68c67d5fd6-c79kr Ready 5h v1.22.9+vmware.1 192.168.0.102 192.168.0.102 Ubuntu 20.04.4 LTS 5.4.0-109-generic containerd://1.5.11
tkg-1-worker-node-pool-2-799d6bccf5-8vj7l Ready 4h46m v1.22.9+vmware.1 192.168.0.100 192.168.0.100 Ubuntu 20.04.4 LTS 5.4.0-109-generic containerd://1.5.11

Updating Let’s Encrypt SSL Certificates for the Avi Controller

Updating Let’s Encrypt SSL Certificates for the Avi Controller

Again, you’ll need the fullchain.pem file but with the appended DST Root CA X3 certificate that was prepared in this article.

Navigate to Templates and then under Security, click on the SSL/TLS tab.

First we need to import each of the CA certificates in the chain before we import the certificate for the Avi Controller.

Again the certificates in the fullchain.pem file in order are

Subscriber Certificate
R3 Certificate
ISRG Root X1 Certificate
DST Root CA X3 Certificate

Click on CREATE, Root/Intermediate CA Certificate. Then import each certificate individually starting from the bottom. Click on Validate and then Import.

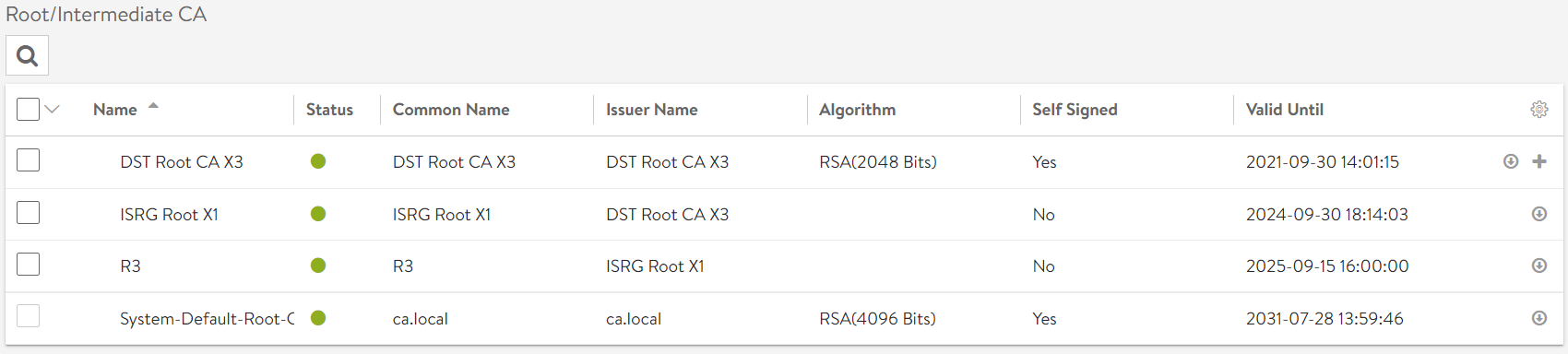

Do this again for the other two certificates, the ISRG Root X1 certificate and then the R3 intermediate certificate. Once done, you’ll see the following.

The Subscriber certificate is done differently.

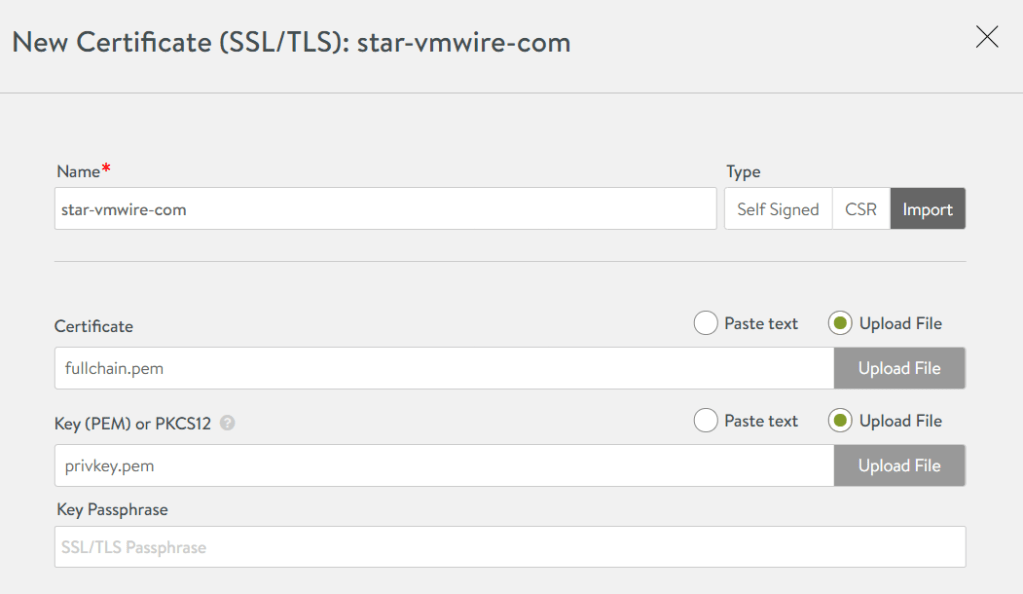

Click on CREATE, Controller Certificate. Then give the certificate a name, click on the Import option and browse to the fullchain.pem file and also the privkey.pem file. A passphrase is not required as Let’s Encrypt does not create a passphrase. Click on Validate and then Import.

Once done, you’ll see the following.

Now that we’ve imported the Let’s Encrypt CA certificates, we can proceed to change the SSL certificate used by the Avi Controller for HTTPS web management.

Navigate to Administration, Settings, Access Settings, then click on the pencil icon.

Delete all of the current certificates in the SSL/TLS Certificate box and then select the new Subscriber certificate that we imported earlier, in my case I named it star-vmwire-com.

Once you press Save, you can close the browser session and open up a new one to start enjoying secure connections to your Avi Controller.
