Introduction to Avi Ingress and Replacing Contour for Prometheus and Grafana

Avi Ingress is an alternative to Contour and NGINX ingress controllers.

Tanzu Kubernetes Grid ships with Contour as the default Ingress controller that Tanzu Packages uses to expose Prometheus and Contour. Prometheus and Grafana are configured to use Contour if you set ingress: true in the values.yaml files.

This post details how to set Avi Ingress up and use it to expose these applications using signed TLS certificates.

Let’s start

Install AKO with helm as normal, use ClusterIP in the Avi values.yaml config file.

Reference link to documentation:

https://avinetworks.com/docs/ako/1.9/networking-v1-ingress/

Create secret for ingress certificate, using a wildcard certificate will enable Avi to automatically secure all applications with the TLS certificate.

tls.key and tls.crt in base64 encoded format.

router-certs-default.yaml

apiVersion: v1
kind: Secret
metadata:
  name: router-certs-default
  namespace: avi-system
type: kubernetes.io/tls
data:
  tls.key: --snipped--
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSUVjVENDQTFtZ0F3SUJBZ0lTQTI0MDJNMStJN01kaTIwRWZlK2hlQitQTUEwR0NTcUdTSWIzRFFFQkN3VUEKTURJeEN6QUpCZ05WQkFZVEFsVlRNUll3RkFZRFZRUUtFdzFNWlhRbmN5QkZibU55ZVhCME1Rc3dDUVlEVlFRRApFd0pTTXpBZUZ3MHlNekF6TWpReE1qSTBNakphRncweU16QTJNakl4TWpJME1qRmFNQ1V4SXpBaEJnTlZCQU1NCkdpb3VkR3RuTFhkdmNtdHNiMkZrTVM1MmJYZHBjbVV1WTI5dE1Ga3dFd1lIS29aSXpqMENBUVlJS29aSXpqMEQKQVFjRFFnQUVmcEs2MUQ5bFkyQUZzdkdwZkhwRlNEYVl1alF0Nk05Z21yYUhrMG5ySHJhTUkrSEs2QXhtMWJyRwpWMHNrd2xDWEtrWlNCbzRUZmFlTDF6bjI1N0M1QktPQ0FsY3dnZ0pUTUE0R0ExVWREd0VCL3dRRUF3SUhnREFkCkJnTlZIU1VFRmpBVUJnZ3JCZ0VGQlFjREFRWUlLd1lCQlFVSEF3SXdEQVlEVlIwVEFRSC9CQUl3QURBZEJnTlYKSFE0RUZnUVVxVjMydlU4Yzl5RFRpY3NVQmJCMFE0MFNsZFl3SHdZRFZSMGpCQmd3Rm9BVUZDNnpGN2RZVnN1dQpVQWxBNWgrdm5Zc1V3c1l3VlFZSUt3WUJCUVVIQVFFRVNUQkhNQ0VHQ0NzR0FRVUZCekFCaGhWb2RIUndPaTh2CmNqTXVieTVzWlc1amNpNXZjbWN3SWdZSUt3WUJCUVVITUFLR0ZtaDBkSEE2THk5eU15NXBMbXhsYm1OeUxtOXkKWnk4d0pRWURWUjBSQkI0d0hJSWFLaTUwYTJjdGQyOXlhMnh2WVdReExuWnRkMmx5WlM1amIyMHdUQVlEVlIwZwpCRVV3UXpBSUJnWm5nUXdCQWdFd053WUxLd1lCQkFHQzN4TUJBUUV3S0RBbUJnZ3JCZ0VGQlFjQ0FSWWFhSFIwCmNEb3ZMMk53Y3k1c1pYUnpaVzVqY25sd2RDNXZjbWN3Z2dFR0Jnb3JCZ0VFQWRaNUFnUUNCSUgzQklIMEFQSUEKZHdCNk1veFUyTGN0dGlEcU9PQlNIdW1FRm5BeUU0Vk5POUlyd1RwWG8xTHJVZ0FBQVljVHlxNTJBQUFFQXdCSQpNRVlDSVFEekZNSklaT3NKMG9GQTV2UVVmNUpZQUlaa3dBMnkxNE92K3ljcTU0ZDZmZ0loQUxOcmNnM0lrNllsCkxlMW1ROHFVZmttNWsxRTZBSDU4OFJhYWZkZlhONTJCQUhjQTZEN1EyajcxQmpVeTUxY292SWxyeVFQVHk5RVIKYSt6cmFlRjNmVzBHdlc0QUFBR0hFOHF1VlFBQUJBTUFTREJHQWlFQW9Wc3ZxbzhaR2o0cmszd1hmL0xlSkNCbApNQkg2UFpBb2UyMVVkbko5aThvQ0lRRGoyS1Q1eWlUOGtRdjFyemxXUWgveHV6VlRpUGtkdlBHL3Zxd3J0SWhjCjJEQU5CZ2txaGtpRzl3MEJBUXNGQUFPQ0FRRUFFczlKSTFwZ3R6T2JyRmd0Vnpsc1FuZC8xMi9QYWQ5WXI2WVMKVE5XM3F1bElhaEZ4UDdVcVRIT0xVSGw0cGdpTThxZ2ZlcmhyTHZXbk1wOUlxQ3JVVElTSnFRblh5bnkyOHA2Zwoyc2NqS2xFSWt2RURvcExoek0ydGpCenc4a1dUYUdYUE8yM0dhcHBHWW14OS9Ma2NkUDVSS0xKMmlRTEJXZlhTCmNQRlNmZWsySEc3dEw1N0s0Uit4eDB4MTdsZ2RLeFdOL1JYQ2RvcHFPY3RyTCtPL0lwWVVWZXNiVzNJbkpFZDkKdjZmS1RmVE84K3JVVnlkajVmUGdFUWJva2Q2L3BDTGdIYS81UVpQMjZ1ZytRa1llUEJvUWRrTkpGOTk4a2NHWQpBZGc0THpJZjdYdU9SNDB4eU90aHIyN1p4Y1FXZnhMM2M4bGJuUlJrMXZNL3pMMDhIdz09Ci0tLS0tRU5EIENFUlRJRklDQVRFLS0tLS0=

k apply -f router-certs-default.yaml

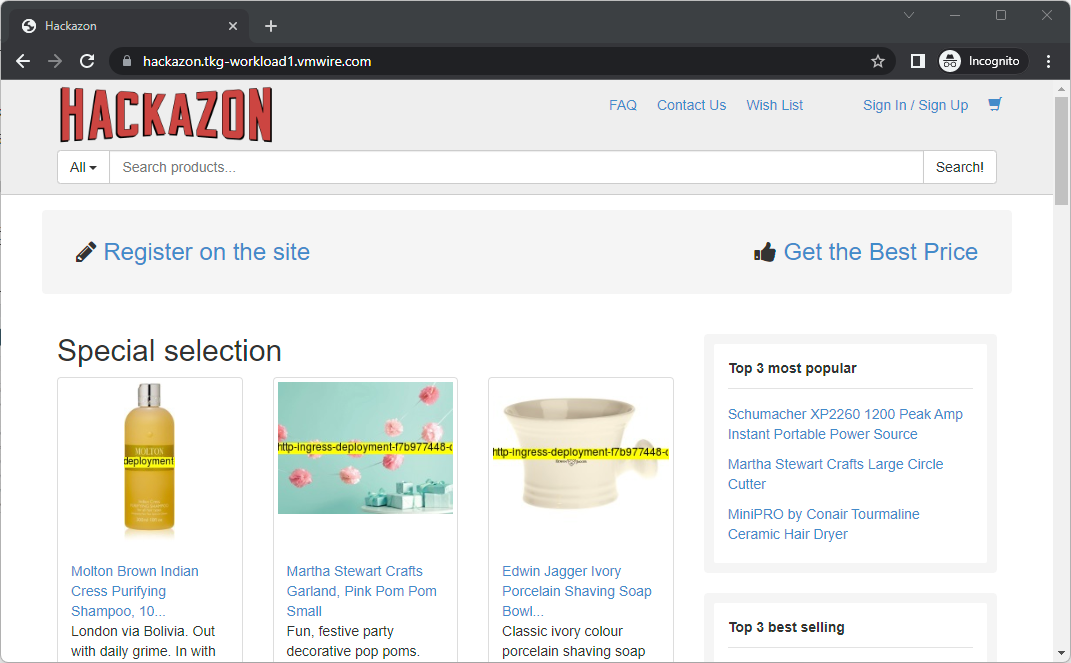

Here is the example online store website deployment using ingress with the certificate. Lets play with this before we get around to exposing Prometheus and Grafana.

sample-ingress.yaml

---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: http-ingress-deployment
  labels:
    app: http-ingress
spec:
  replicas: 1
  selector:
    matchLabels:
      app: http-ingress
  template:
    metadata:
      labels:
        app: http-ingress
    spec:
      containers:
        - name: http-ingress
          image: ianwijaya/hackazon
          ports:
            - name: http
              containerPort: 80
              protocol: TCP
      imagePullSecrets:
      - name: regcred
---
kind: Service
apiVersion: v1
metadata:
  name: ingress-svc
  labels:
    svc: ingress-svc
spec:
  ports:
    - name: http
      port: 80
      targetPort: 80
  selector:
    app: http-ingress
  type: ClusterIP

avisvcingress.yaml

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: avisvcingress
  annotations:
    ako.vmware.com/enable-tls: "true"
  labels:
    app: avisvcingress
spec:
  ingressClassName: avi-lb
  rules:
    - host: "hackazon.tkg-workload1.vmwire.com"
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: ingress-svc
                port:
                  number: 80

Note that the Service uses ClusterIP and the Ingress is annotated with ako.vmware.com/enable-tls: "true" to use the default tls specified in router-certs-default.yaml. Also add the ingressClassName into the Ingress manifest.

k apply -f sample-ingress.yaml

k apply -f avisvcingress.yaml

k get ingress avisvcingress

NAME CLASS HOSTS ADDRESS PORTS AGE
avisvcingress avi-lb hackazone.tkg-workload1.vmwire.com 172.16.4.69 80 13m

Let’s add another host

Append another host to the avisvcingress.yaml file.

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: avisvcingress
  annotations:
    ako.vmware.com/enable-tls: "true"
  labels:
    app: avisvcingress
spec:
  ingressClassName: avi-lb
  rules:
    - host: "hackazon.tkg-workload1.vmwire.com"
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: ingress-svc
                port:
                  number: 80
    - host: "nginx.tkg-workload1.vmwire.com"
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: nginx-service
                port:
                  number: 80

k replace -f avisvcingress.yaml

And use the trusty statefulset file to create an nginx webpage. statefulset-topology-aware.yaml

---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
  namespace: default
  labels:
spec:
  selector:
    app: nginx
  ports:
    - port: 80
      targetPort: 80
      protocol: TCP
  type: ClusterIP
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: web
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nginx
  serviceName: nginx-service
  template:
    metadata:
      labels:
        app: nginx
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: failure-domain.beta.kubernetes.io/zone
                operator: In
                values:
                - az-1
                - az-2
                - az-3
        podAntiAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
          - labelSelector:
              matchExpressions:
              - key: app
                operator: In
                values:
                - nginx
            topologyKey: failure-domain.beta.kubernetes.io/zone
      terminationGracePeriodSeconds: 10
      initContainers:
      - name: install
        image: busybox
        command:
        - wget
        - "-O"
        - "/www/index.html"
        - https://raw.githubusercontent.com/hugopow/cse/main/index.html
        volumeMounts:
        - name: www
          mountPath: "/www"
      containers:
        - name: nginx
          image: k8s.gcr.io/nginx-slim:0.8
          ports:
            - containerPort: 80
              name: web
          volumeMounts:
            - name: www
              mountPath: /usr/share/nginx/html
            - name: logs
              mountPath: /logs
  volumeClaimTemplates:
    - metadata:
        name: www
      spec:
        accessModes: [ "ReadWriteOnce" ]
        storageClassName: tanzu-local-ssd
        resources:
          requests:
            storage: 2Gi
    - metadata:
        name: logs
      spec:
        accessModes: [ "ReadWriteOnce" ]
        storageClassName: tanzu-local-ssd
        resources:
          requests:
            storage: 1Gi

k apply -f statefulset-topology-aware.yaml

k get ingress avisvcingress

NAME            CLASS    HOSTS                                                             ADDRESS       PORTS   AGE
avisvcingress   avi-lb   hackazon.tkg-workload1.vmwire.com,nginx.tkg-workload1.vmwire.com   172.16.4.69   80      7m33s

Notice that another host is added to the same ingress, and both hosts share the same VIP.

Lets add Prometheus to this!

Create a new manifest for Prometheus to use called monitoring-ingress.yaml

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: monitoring-ingress
  namespace: tanzu-system-monitoring
  annotations:
    ako.vmware.com/enable-tls: "true"
  labels:
    app: monitoring-ingress
spec:
  ingressClassName: avi-lb
  rules:
    - host: "prometheus.tkg-workload1.vmwire.com"
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: prometheus-server
                port:
                  number: 80

Note that since Prometheus when deployed by Tanzu Packages is deployed into the namespace tanzu-system-monitoring, we also need to create the new ingress in the same namespace.

Deploy Prometheus following the documentation here, but do not enable ingress in the prometheus-data-values.yaml file, that uses Contour. We don’t want that as we are using Avi Ingress instead.

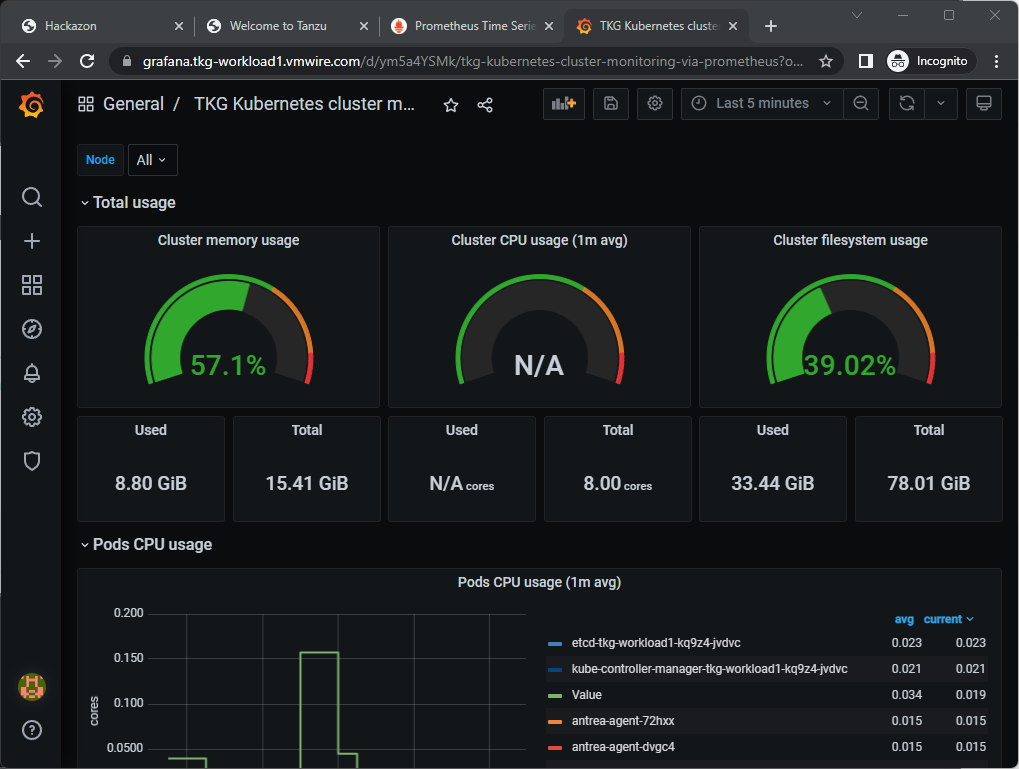

Add Grafana too!

Create a new manifest for Grafana to use called dashboard-ingress.yaml.

---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: dashboard-ingress
  namespace: tanzu-system-dashboards
  annotations:
    ako.vmware.com/enable-tls: "true"
  labels:
    app: dashboard-ingress
spec:
  ingressClassName: avi-lb
  rules:
    - host: "grafana.tkg-workload1.vmwire.com"
      http:
        paths:
          - pathType: Prefix
            path: /
            backend:
              service:
                name: grafana
                port:
                  number: 80

Note that since Grafana when deployed by Tanzu Packages is deployed into the namespace tanzu-system-dashboards, we also need to create the new ingress in the same namespace.

Deploy Grafana following the documentation here, but do not enable ingress in the grafana-data-values.yaml file, that uses Contour. We don’t want that as we are using Avi Ingress instead.

Summary

Ingress with Avi is really nice, I like it! A single secret to store the TLS certificates and all hosts are automatically configured to use TLS. You also just need to expose TCP 80 as ClusterIP Services and Avi will do the rest for you and expose the application over TCP 443 using the TLS cert.

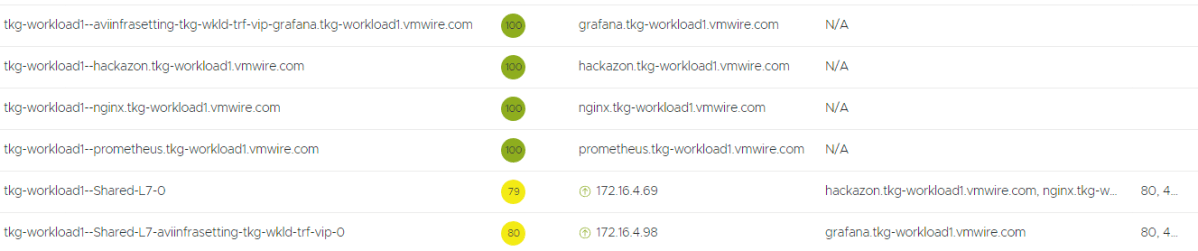

Here you can see that all four of our applications – hackazon, nginx running across three AZs, Grafana and Prometheus all using Ingress and sharing a single IP address.

Very cool indeed!

k get ingress -A

NAMESPACE                 NAME                 CLASS    HOSTS                                                              ADDRESS       PORTS   AGE
default                   avisvcingress        avi-lb   hackazon.tkg-workload1.vmwire.com,nginx.tkg-workload1.vmwire.com   172.16.4.69   80      58m
tanzu-system-dashboards   dashboard-ingress    avi-lb   grafana.tkg-workload1.vmwire.com                                   172.16.4.69   80      3m47s
tanzu-system-monitoring   monitoring-ingress   avi-lb   prometheus.tkg-workload1.vmwire.com                                172.16.4.69   80      14m
