A look at VMware vCloud Director Organization LDAP Authentication Options

VMware vCloud Director can use three different authentication mechanisms for subscriber authentication to the VCD portal. The portal is accessed using the URL https://<cloud-url>/cloud/org/<organisation>. In this post, I’ll try to highlight some of the authentication options that a subscriber can use to access the VCD portal.

Supported LDAP Services

Platform LDAP Server Authentication Methods
Windows Server 2003 Active Directory Simple, Simple SSL, Kerberos, Kerberos SSL
Windows Server 2008 Active Directory Simple
Windows 7 (2008 R2) Active Directory Simple, Simple SSL, Kerberos, Kerberos SSL
Linux OpenLDAP Simple, Simple SSL

VCD LDAP Options

A provider can configure a subscriber to use three different authentication mechanisms as highlighted by Figure 1.

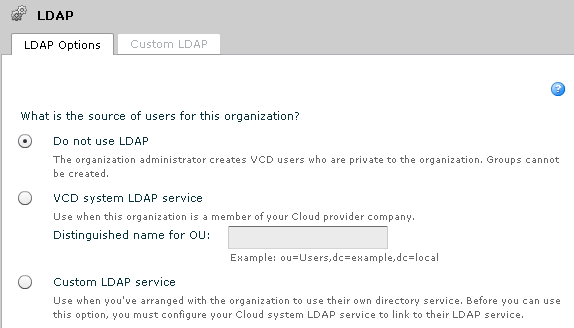

Figure 1 – VCD LDAP Options

  1. Do not use LDAP (also known as local authentication)

    This is the simplest authentication method, selecting this radio button when configuring a new Organization will not use any kind of LDAP service. Instead, new users will need to be configured using the VCD GUI or the VCD API, and these users will be stored within the VCD database. Some of the disadvantages when using the local authentication are:

  • Groups cannot be used
  • A minimum length of 6 character only
  • No password complexity policies
  • No password expiration policies
  • No password history
  • No authentication failure controls
  • No integration with enterprise identity management systems
  1. VCD system LDAP service

    Selecting this will force the Organization to use the same LDAP service as the LDAP service that is used by the VCD system (Provider). Although, a separate OU can be used for each Organization, this is not the ideal model to use for large cloud deployments. Some of the disadvantages when using the VCD system LDAP service are:

  • Organizations must use the same LDAP service as the Provider.
  • Although separate OUs can be used, Organizations may not want to have their Users and Groups managed by the Provider.
  • Organizations may not want to share the same LDAP service with another Organization, even if separate OUs are used.
  • No self-service of the LDAP service by each subscriber is possible unless complex access is setup for each subscriber to their respective OU.
  1. Custom LDAP service

    Selecting this will allow the Organization to use its own private LDAP service. What this means is for each Organization, a completely separate and unique LDAP service can be used for that Organization, an Organization does not need to use the same service as the VCD system but can use its own LDAP service. This can be a completely separate unique Active Directory Forest for example, with no network links to any other AD Forest.

VCD System LDAP Service

Consider this following example:

I run a Public Cloud so I am a Provider of cloud services, my VCD system authenticates to a Microsoft Active Directory Forest with a domain name of HUGO.LOCAL. This allows me as a System Administrator to log into my VCD portal as a user on HUGO.LOCAL.

As the System Administrator, I first configure an LDAP service for the VCD System:

Figure 2 – VCD System LDAP

Then, a new Security Group called SG_VCD.System.Administrators is created in the HUGO.LOCAL domain, with the user HUGO.LOCAL\HPhan as a member of that group.

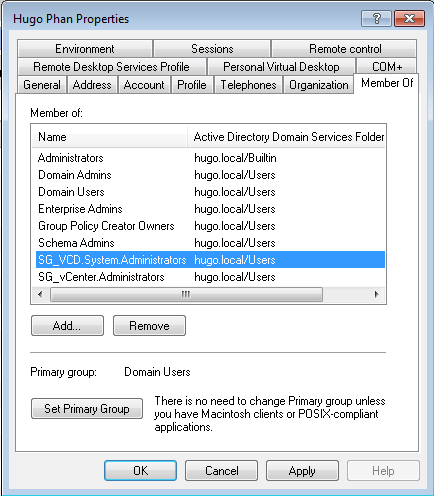

Figure 3 – VCD System Administrators Group

The new Security Group SG_VCD.System.Administrators is then added to the System Administrator role in VCD.

Figure 4 – Import LDAP group into VCD role

Now I can log into my cloud as a System Administrator with my domain user HUGO\HPhan.

Figure 5 – System LDAP

Organization Custom LDAP Service

So pretty easy and straightforward so far right? What happens when a subscriber comes along and wants to use my cloud services? Let’s do another example.

A new organization let’s say Coke, wish to use their own LDAP service to authenticate with the VCD portal. In much the same way as how the System LDAP was configured, an Organization LDAP service is configured in similar ways.

As a System Administrator, I first configure a LDAP service for the Coke Organization, instead of using the HUGO.LOCAL LDAP service, I now direct this Organization’s LDAP service to a unique LDAP service for Coke. This can be a LDAP service hosted by me (the Provider) and managed by Coke (think co-lo), or a LDAP service managed by Coke in Coke’s datacentres (think MPLS/IPVPN):

Figure 6 – Organization LDAP

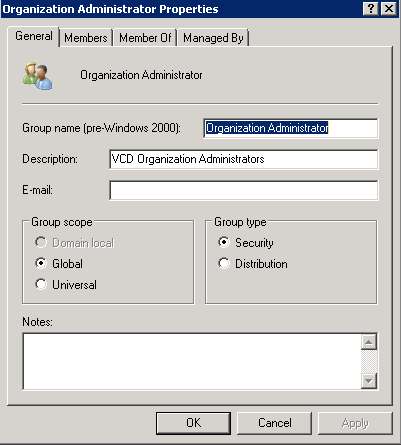

Then a new Security Group called Organization Administrators is created in the COKE.LOCAL domain, with the user COKE.LOCAL\John.Smith as a member of that group.

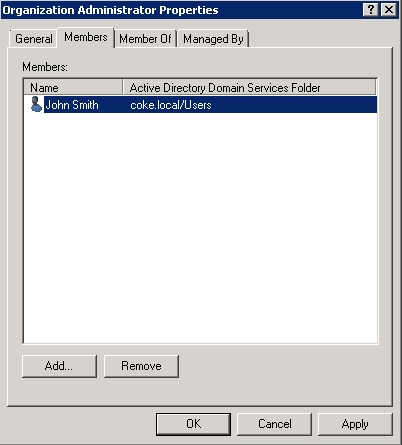

Figure 7 – VCD Organization Administrators Group and Members


The new Security Group Organization Administrator is then added to the Organization Administrator role in Coke’s Organization.

Figure 8 – Assign LDAP Group to VCD Role

John Smith can log into the Coke Organization as an Organization Administrator with the domain user COKE\John.Smith.

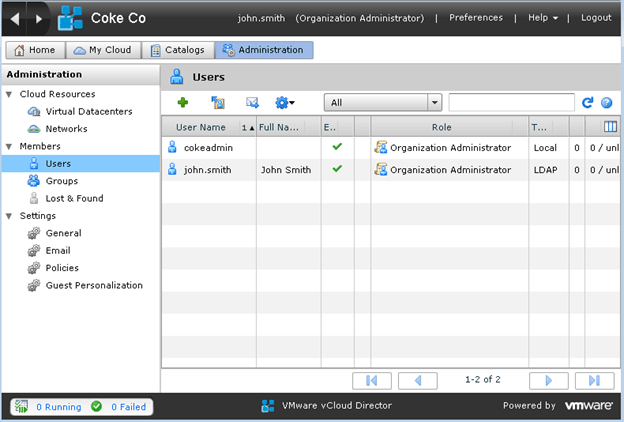

Figure 9 – LDAP User logged into VCD

So what happens when another Organization joins the party? Extending our example above, let’s say Pepsi also want to use my cloud services. In much the same way that the Coke Organization is configured to use its own LDAP service, we do the same for the Pepsi Organization – an Organization Administrator group is created in the PEPSI.LOCAL domain, and a user named Peter.Smith is a member of that group, Peter Smith can also log into Pepsi’s Organization as an Organization Administrator.

Figure 10 – Another LDAP User logged into VCD

In Summary

In summary the provider will use the System LDAP, all other (subscribers) Organizations could also use the System LDAP (either with a separate OU or not) if required, however, you can also configure each Organization to use its own LDAP Service.

  • We have a Provider which uses the domain HUGO.LOCAL to authenticate the System VCD, with the Active Directory Security Group SG_VCD.System.Administrators having the System Administrator role in VCD and my account HUGO\HPhan is a member of this group.
  • We have subscriber 1 with an Organization named Coke Co, and this organization uses its own LDAP service which is backed by a domain COKE.LOCAL.
  • We have another subscriber, subscriber 2 with an Organization named Pepsi Co, and this organization uses its own LDAP service which is backed by a domain PEPSI.LOCAL.
  • Provider – Uses HUGO.LOCAL – System LDAP
  • Subscriber 1 – Uses COKE.LOCAL – Custom LDAP
  • Subscriber 2 – Uses PEPSI.LOCAL – Custom LDAP
  • There is no trust between the Provider LDAP or any Subscribers’ LDAP required.
  • More importantly, there is no trust and no network connectivity between any of the subscriber’s LDAP systems.

Securing Custom LDAP Services

For each Organization, a single LDAP Service for that Organization will need to be configured as a Custom LDAP to authenticate to. To enable this functionality, the vCloud Director Cell must be able to connect to ALL LDAP servers over TCP 389 or 636. The VMware vCloud Security Hardening Guide gives good recommendations on how Service Providers can host Subscribers’ LDAP servers and also how to maintain connectivity to Subscribers’ LDAP servers if hosted remotely over MPLS/VPN etc.

It is therefore important that the vCD Cell is secured and network connectivity to each organization’s LDAP services are also secured. The following extract from the VMware vCloud Security Hardening Guide explains the connectivity options for subscriber’s LDAP services:

Connectivity from the VMware vCloud Director cells to the system LDAP server and any Organization LDAP servers must be enabled for the software to properly authenticate users. As recommended in this document, the system LDAP server must be located on the private management network, separated from the DMZ by a firewall. Some cloud providers and most IT organizations will run any Organization LDAP servers required, and those too would be on a private network, not the DMZ. Another option for an Organization LDAP server is to have it hosted and managed outside of the cloud provider’s environment and under the control of the Organization. In that case, it must be exposed to the VMware vCloud Director cells, potentially through the enterprise datacenter’s own DMZ (see Shared Resource Cloud Service Provider Deployment above).

In all of these circumstances, opening the appropriate ports through the various firewalls in the path between the cells and the LDAP server is required. By default, this port is 389/TCP for LDAP and 636/TCP for LDAPS; however, this port is customizable with most servers and in the LDAP settings in the Web UI. Also, a concern that arises when the Organization is hosting their own LDAP server is exposing it through their DMZ. It is not a service that needs to be accessible to the general public, so steps should be taken to limit access only to the VMware vCloud Director cells. One simple way to do that is to configure the LDAP server and/or the external firewall to only allow access from IP addresses that belong to the VMware vCloud Director cells as reported by the cloud provider. Other options include systems such as per-Organization site-to-site VPNs connecting those two sets of systems, hardened LDAP proxies or virtual directories, or other options, all outside the scope of this document.

Figure 11 – Multiple Custom LDAP in VCD

Note: The use of Coke and Pepsi are used as an example of multi tenancy within a public cloud and the use of the names on this blog are for information purposes only.
